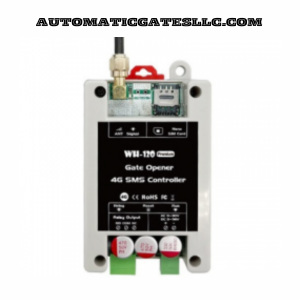

WH-120 PRO 4G GSM Gate Opener in UAE

WH-120 PRO 4G GSM Gate Opener is a versatile and highly efficient remote control system designed for a wide range of applications, including gates, bollards, barriers, garage doors, shutters, and access doors. Leveraging the power of 4G GSM network communication, this gate opener offers unparalleled convenience and security, ensuring seamless operation from anywhere in the world.

Key Features

• 4G GSM Network Communication: Operates over the 4G GSM network, ensuring no distance limitations and providing remote control capabilities from anywhere.
• Nano SIM Card Compatibility: Works with a Nano SIM card. Users can simply dial the SIM card number to open the door.
• Cost-Effective Operation: No phone charges, no key fobs required. The system rejects calls from authorized numbers, triggering the relay to turn ON/OFF on the first ring.
• User-Friendly: Provides a modern and fun way to unlock doors by shaking the mobile phone.
• Multiple Applications: Suitable for controlling gates, bollards, barriers, garage doors, shutters, and access doors.
• High Security: Utilizes caller ID for identification, ignoring unknown callers for enhanced security.
• Remote Management: Users can add or remove authorized phone numbers via SMS text commands, supporting up to 200 or 1200 authorized numbers.
• Relay Control: Features one output relay (3A/240VAC) for connecting to door switches or machines, with SMS confirmation sent to the owner (editable function).

Specifications

• Rated Voltage: AC 9V-30V and DC 9V-36V/1A
• Operating Temperature: -10℃ to +60℃
• Storage Temperature: -20℃ to +60℃
• Relative Humidity: 10-90%, no condensation
• Work Frequency:
  • GSM: Quad-band 850/900/1800/1900MHz
  • 4G-EU (EMEA):
    • LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28
    • LTE-TDD Bands: B38/B40/B41
  • 4G-AU (Latin America/Australia/New Zealand):
    • LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B28
    • LTE-TDD Bands: B40
    • WCDMA: B1/B2/B4/B5/B8
• Communication Protocol: GSM PHASE 2/2+ (including data service)
• Output Relay: Rated voltage of 3A/240V AC
• SIM Card: Nano type, 3V
• Antenna: 50 Ω SMA
• Wired Switch Support: Yes
• Dimensions: 96.5 x 50 x 31.5 mm
• Net Weight: 88g

Applications

The WH-120 PRO 4G GSM Gate Opener is ideal for residential, commercial, and public properties, providing a reliable and secure method for controlling access. Its robust design and advanced features make it a perfect choice for enhancing the security and convenience of various access points.
